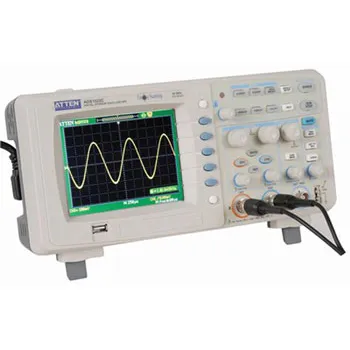

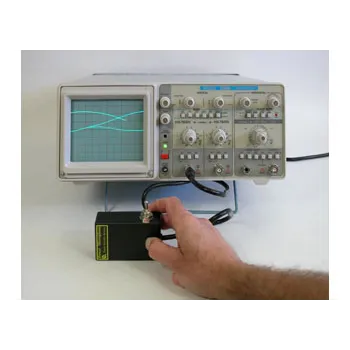

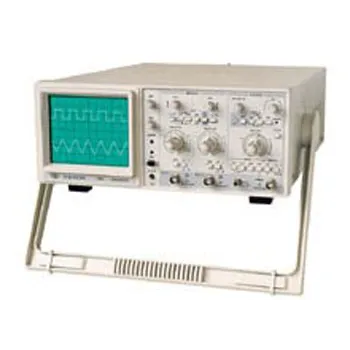

Oscilloscope - Dual Trace Digital - 20Mhz

This dual-trace digital oscilloscope is an essential instrument for exploring waveforms, signals, and voltage behaviours in physics and electronics classes. With a 20MHz bandwidth and two independent input channels, it provides students and educators with the capability to observe and compare electrical signals in real time. The device is housed in a compact, user-friendly design and includes features typically found in more advanced models, such as X-Y mode, sweep magnification, and TV synchronisation. Whether analysing audio signals or experimenting with AC/DC circuits, this oscilloscope provides a robust platform for hands-on learning and investigation into core principles of electricity and signal processing.

Educational Benefits:

• Offers direct observation of voltage waveforms, frequencies, and signal patterns.
• Helps students develop circuit analysis skills and understand concepts like frequency, amplitude, and phase.
• Reinforces understanding of alternating current (AC) versus direct current (DC) behaviour.
• Encourages STEM engagement through practical data visualisation and signal interpretation.

Classroom Application Ideas:

• Measure signal output from function generators or sensors in circuit-building lessons.
• Compare input/output behaviour of filters and amplifiers.
• Use in demonstration experiments involving resonance, transmission, and reflection of waves.
• Display signals from audio equipment or microcontroller projects for analysis.

Specifications:

• Bandwidth: 20MHz (Models may also support 40MHz/50MHz variants)
• Channels: Dual (2-channel)
• Triggering: ALT triggering function
• Sweep Features: Encoder-controlled sweep switch, 10x sweep magnification
• Display: 6-inch rectangular CRT with 8x10 division internal graticule
• X-Y Mode: Supported
• Voltage Ratings: Max input voltage 400V (DC + AC peak at 1kHz)
• Accelerating Voltage: 2kV (20MHz model), 12kV (40MHz model)
• Input Impedance: 1MΩ ±5%, 25pF ±5%
• Power Requirements: Front panel illumination and controls
• Model Number: CA620
• Use Case: Suitable for classroom, laboratory, and technical instruction
