Simple Machines - Motion Converter

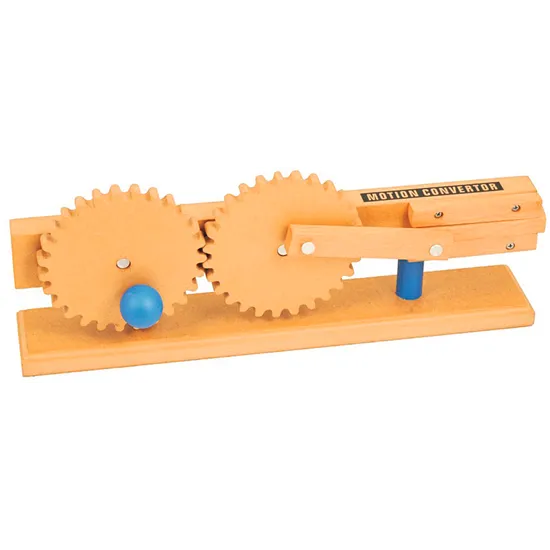

Explore how circular motion transforms into linear action with the Motion Converter model. This high-quality wooden apparatus clearly shows how a crank or rotating gear can produce push-and-pull motion. Widely used in internal combustion engines, steam locomotives and other mechanical systems, motion converters are essential for understanding the basis of machine function and efficiency.

Educational benefits:

• Provides a working model of a rotary-to-linear motion converter
• Promotes mechanical understanding through observation and experimentation
• Reinforces core concepts of engineering, force, and motion
• Encourages problem-solving and inquiry-based learning

Classroom activity ideas:

• Observe how a gear rotation results in repetitive back-and-forth motion
• Discuss how this principle is used in engines and industrial systems
• Investigate how motion varies with gear speed or size
• Link to historical machines and the development of mechanical tools

Specifications

• Made from particle board and wooden blocks
• Gears are 12 cm in diameter
• Base: 38.5 cm (W) x 6.8 cm (L), Height: 14.5 cm
• Supplied fully assembled with instruction manual for classroom use
