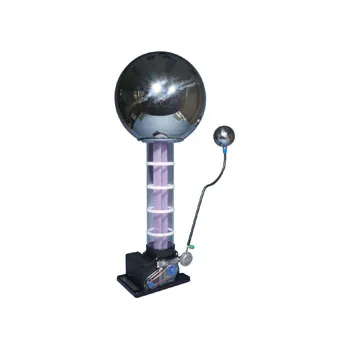

Van De Graaff Generator Large Variable Speed 400kV

The 400kV Van De Graaff Generator is a modern, compact, and robust instrument, designed with all parts fully exposed for educational use in the classroom. This special model, featuring a 300mm diameter dome, is ideal for impressive demonstrations and experiments, providing a visual and hands-on experience of electrostatic phenomena.

Key Features:

¢ : High Voltage Output: Capable of generating up to 400kV, creating a 15cm spark gap for dramatic demonstrations.

¢ : Large Dome: 300mm diameter dome enhances visual impact and allows for impressive electrostatic displays.

¢ : Accessible Design: Exposed components, including both combs and the belt, for easy observation and understanding of the electrostatic generation process.

¢ : Durable Construction: Long-lasting silicone rubber belt and high-quality materials ensure excellent performance and reliability.

¢ : Variable Speed Control: Belt driven by a speed-controlled DC electric motor for adjustable performance.

:

Educational benefits:

¢ : Electrostatic Demonstrations: Perfect for demonstrating principles of electrostatics, electric fields, and charge distribution in a visually engaging manner.

¢ : Interactive Learning: Students can observe and participate in experiments that illustrate key concepts in electricity and magnetism.

¢ : Hands-On Experience: Provides a tangible way to explore and understand the behaviour of static electricity and high voltage phenomena.

Classroom activity ideas:

• Use variable speed settings to explore the relationship between belt speed and spark intensity
• Pair with accessories (e.g. discharge balls, Faraday pails) to investigate field effects
• Observe spark gap discharge and measure its length under controlled conditions
• Discuss real-world applications of electrostatics in particle physics and industry
• Facilitate group inquiry where students design and test their own electrostatic experiments

Specifications:

¢ : Output Voltage: 400kV

¢ : Spark Gap: Approx. 15cm

¢ : Discharge Ball: 80mm diameter with insulated handle and earth terminal connection

¢ : Charging Belt: 55mm wide silicone rubber

¢ ::Dimensions:

: : : : ¢ : :Total Height: 700mm

: : : : ¢ : :Base Dimensions: 210x160mm

: : : : ¢ : :Ball Diameter: 300mm

: : : : ¢ : :Discharge Ball Diameter: 80mm

: : : : ¢ : :Discharge Ball Rod Length: 490mm

Things to Consider When Buying the Van De Graaff Generator:

¢ : Safety Precautions: Ensure proper safety measures are in place to prevent accidental shocks and handle high voltage equipment safely.

¢ : Storage and Transport: Easily dismantled into separate components for convenient storage and transport.

¢ : Educational Context: Suitable for advanced physics classes and demonstrations that require visual and hands-on learning experiences.

:

About Our Products:

We are dedicated to providing high-quality educational tools and equipment designed to enhance learning experiences in the classroom. Our products are built to meet the highest standards of durability, performance, and safety.

Important Note: Please follow all safety guidelines and precautions when operating high voltage equipment. This product is intended for educational demonstrations under the supervision of a qualified instructor.

Enhance your classroom with the Van De Graaff Generator - Large Variable Speed 400kV, offering a powerful and engaging way to explore the fascinating world of electrostatics and high voltage phenomena.
